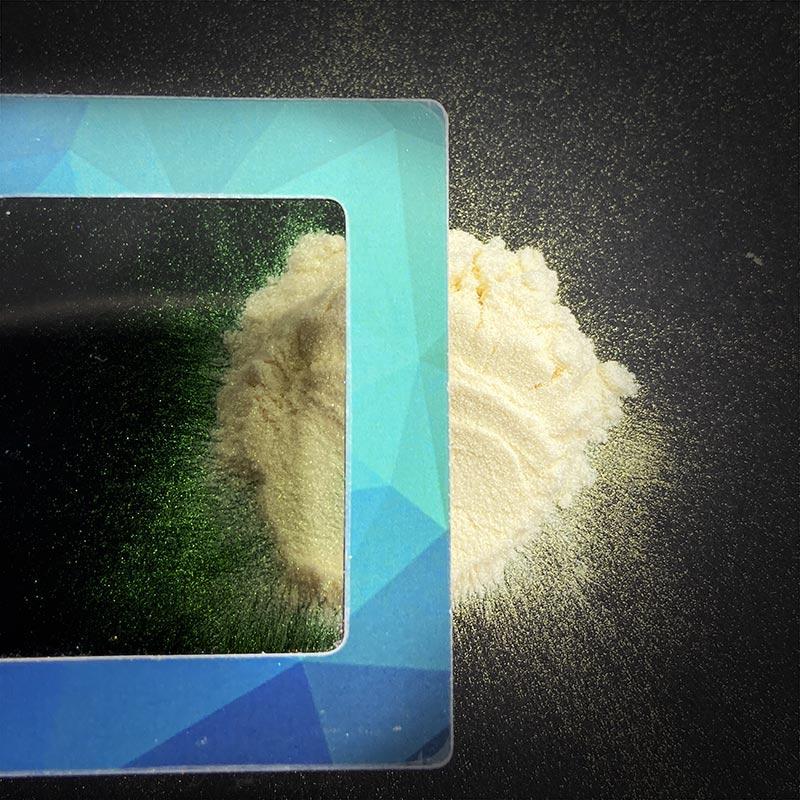

iSuoChem GGB is a type of Liquid Crystal Security polymer Pigment.
Principle of Color-changing:
Because the liquid crystal molecules are controllable and micro-arranged, GGB Liquid Crystal Security Pigment has a sharp appearance color that changes with the viewing angle.
Besides, Some models of Liquid Crystal Security Pigment also have polarization effects. This allows the users to observe different colors under some certification tools.

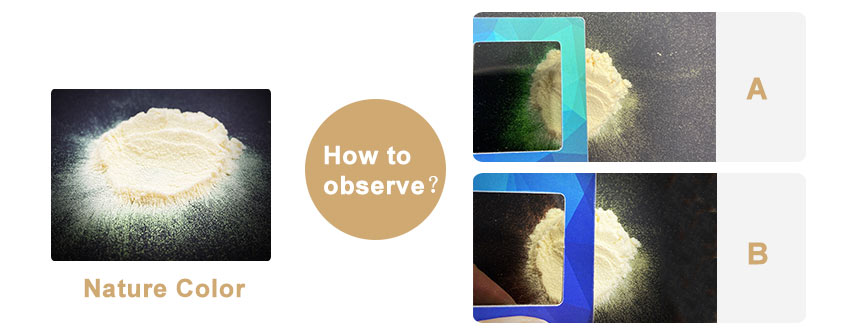

How to Observe?

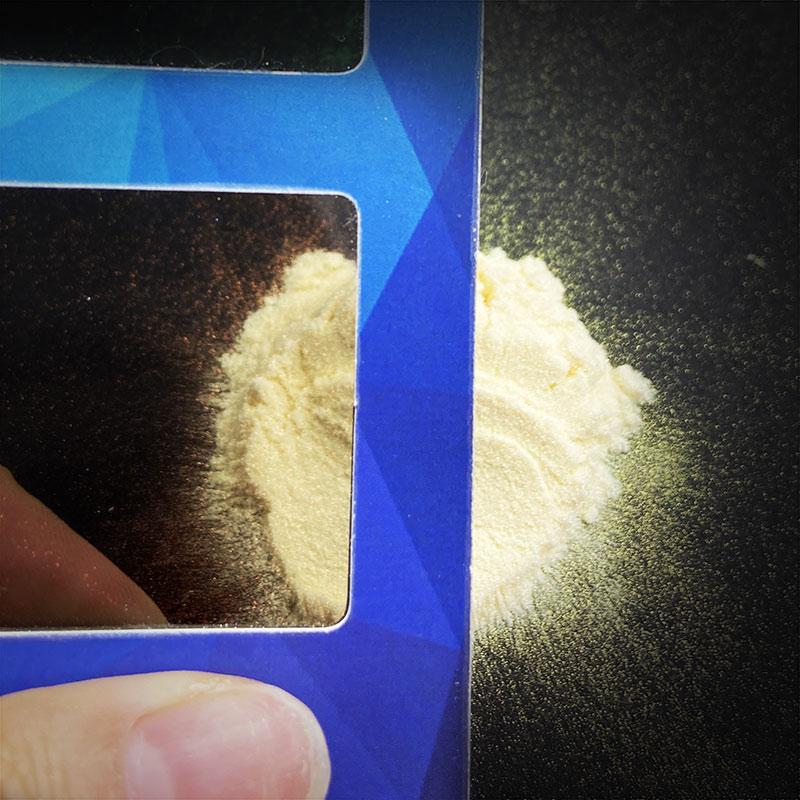

How to Observe the different colors under different viewing angle of polarization?
Specifications:

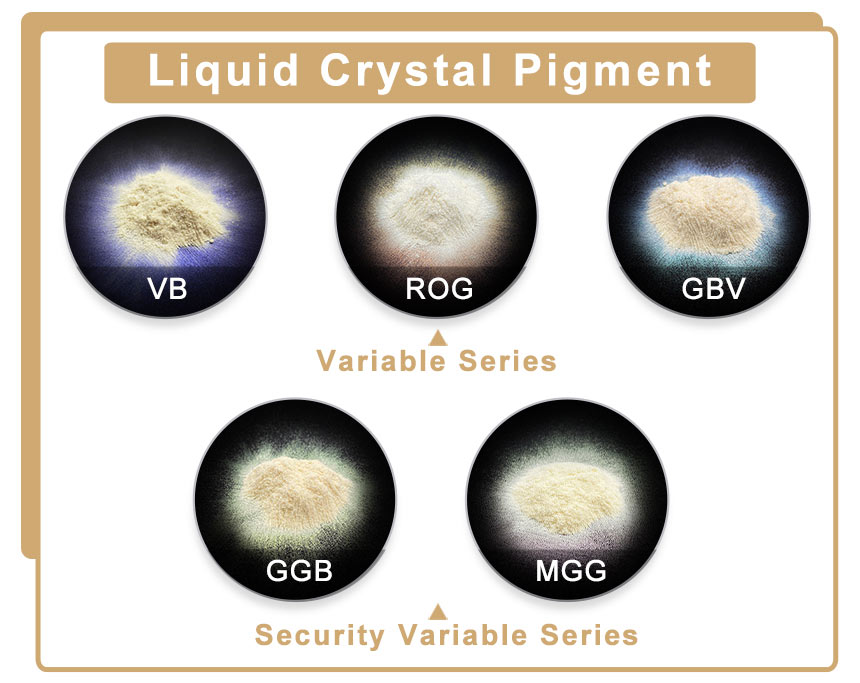

Product Series
Colors
Type No
Particle size
Particle Size(D50)
Liquid Crystal Variable Series
High light Green
GBV
10-100um
10/30/50um
Liquid Crystal Variable Series
High light Red
ROG
10-100um
10/30/50um
Liquid Crystal Variable Series
High light Blue
VB
10-100um
10/30/50um
Liquid Crystal Security
Variable Series
High light Magenta
MGG
10-100um
10/30/50um
Liquid Crystal Security
Variable Series
High light Yellow
GGB
10-100um
10/30/50um

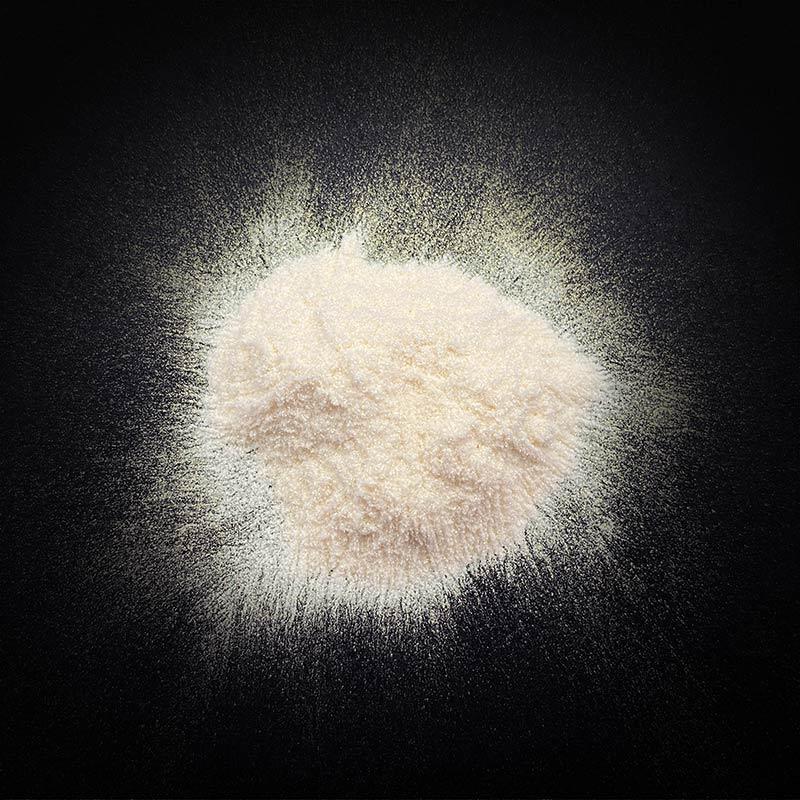

Appearance: Transparent colored powder
Acid Resistance: 0.8
Alkali Resistance: 0.2
Heat Resistance: 1.3 (150℃ x 30min), 1.7 (200℃ x 10min),
Solvent Resistance: 5 min for Xylene, 2-butanone, Ethanol, ethyl acetate, propylene glycol methyl ether
Product Features:
1. Easy to recognize(Authenticity identification): Customers, brand partners, and management groups can easily and clearly check if something is real.

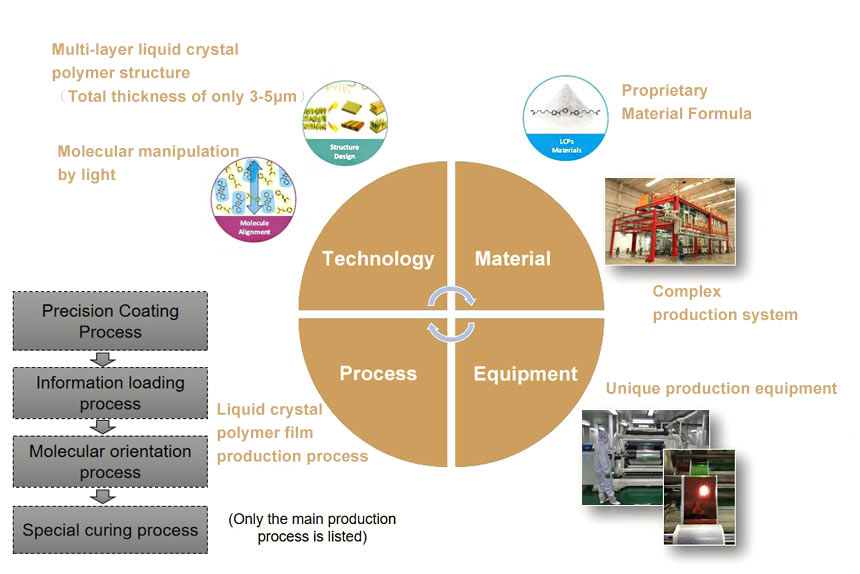

2. Difficult to forge(Technology, Material, Process and Equipment):
The Anti-fake technology itself cannot be cracked. The effect of the technology cannot be replaced by another technology route.
3. Strict management and control: The entire production process of the liquid crystal pigment is closely tracked to prevent human errors from impacting product safety.
4. Confidential cooperation: We highly value the uniqueness and exclusivity of our collaborations, and we are committed to being accountable to our partners through to the end.
The liquid crystal security pigment is specially suitable for both aesthetic appeal and high levels of security and anti-counterfeiting measures.
The liquid crystal pigment can be utilized in the production of water-based, solvent-based, and UV printing inks, making it suitable for silk screen printing and gravure printing applications.
Storage:
iSuoChem® Liquid crystal pigment should be kept in a dry location, ideally within its original sealed container, at temperatures ranging from 10 to 25°C.
